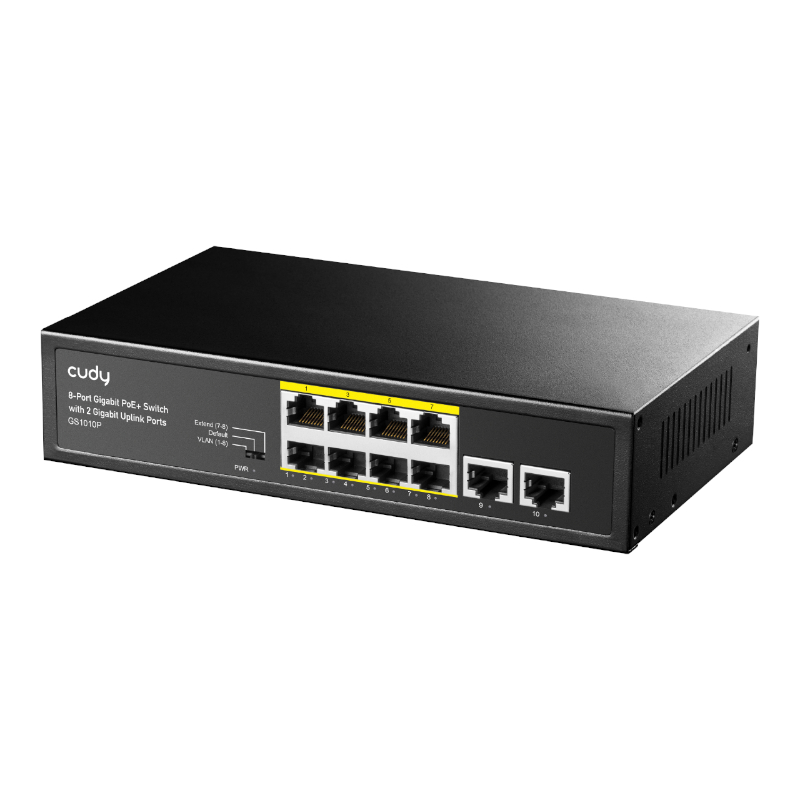

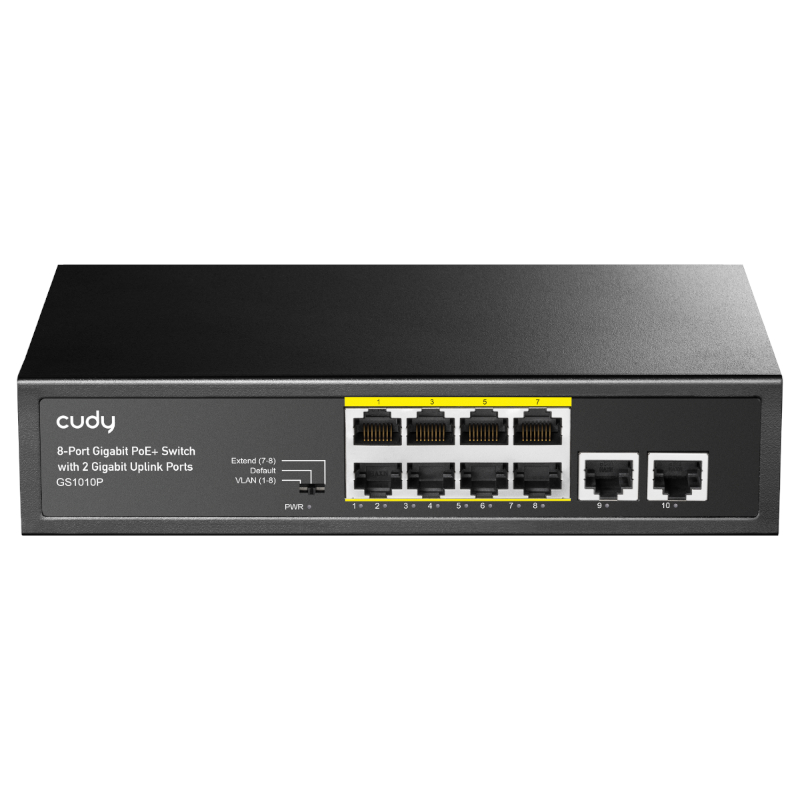

Cudy 8-Port Gigabit PoE+ Unmanaged Switch

Description

The Cudy GS1010PE 10-Port Gigabit PoE+ Switch allows you to manage your home or office network with ease. It supports bandwidth speeds of up to 20Gbps and features 8 Ethernet ports and 2 uplink ports. Its high-speed RJ-45 connectors support any 10/100/1000Mbps Ethernet devices.

Used for many applications the Cudy GS1010PE works with IP Cameras for home, office or small businesses. It also works well with PCs, printers and access points in your home or office, making it ideal for small businesses. It even features auto detect power for devices for additional security.

Its simple plug and play interface makes it incredibly easy to use. Its sturdy design is made from high-quality metal. This gives you a longer service life and provides better heat dissipation, making it suitable for most environments. It also features a fanless design for silent operation and can be easily mounted to a wall or onto a rack.

FEATURES:

• Up to 120 watts total PoE budget
• Up to 30 watts PoE power one port
• 8 x 10/100/1000Mbps PoE+ ports
• 2 x 10/100/1000Mbps uplink ports
• Comply with IEEE802.3af/at standards
• IEEE 802.3x Flow control

SPECIFICATIONS:

• Network Protocol:
  • IEEE802.3 / IEEE802.3u
  • IEEE802.3x / IEEE802.3af/at
• PoE standard: IEEE802.3af/at
• POE port output: DC 48-55V
• PoE port: 1-8

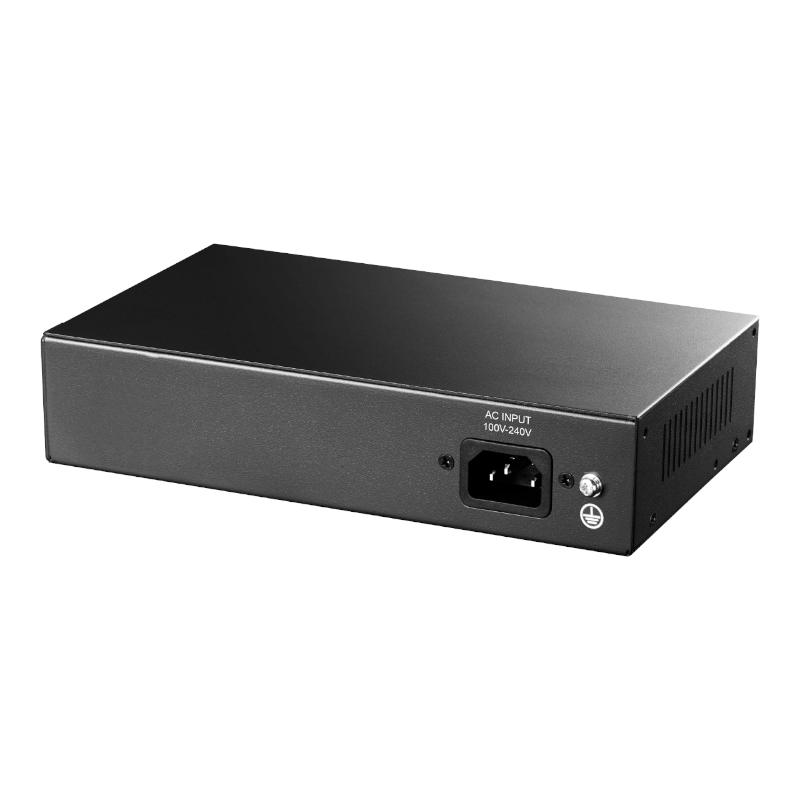

• AC Input Voltage: AC100~240V
• Output: 52V ~ 2.3A
• Power supply: 120W
• Power Pin: Power over spare pairs 1/2(+), 3/6 (-)
• PoE output-port: Max 30W
• MAC Address: 2K MAC address table
• Packet Neck Scarfer: 2M bit
• Transfer Mode: Store-and-forward
• Bandwidth: 20Gbps
• Fan: Fanless
• Certification: CE, FCC Class A
• Colour: Grey
• Product Dimensions: 22.2 x 16.3 x 4 cm

WHAT’S IN THE BOX:

• Cudy GS1010PE 10-Port Gigabit PoE+ Switch – Grey x1
• Power Adapter x1
