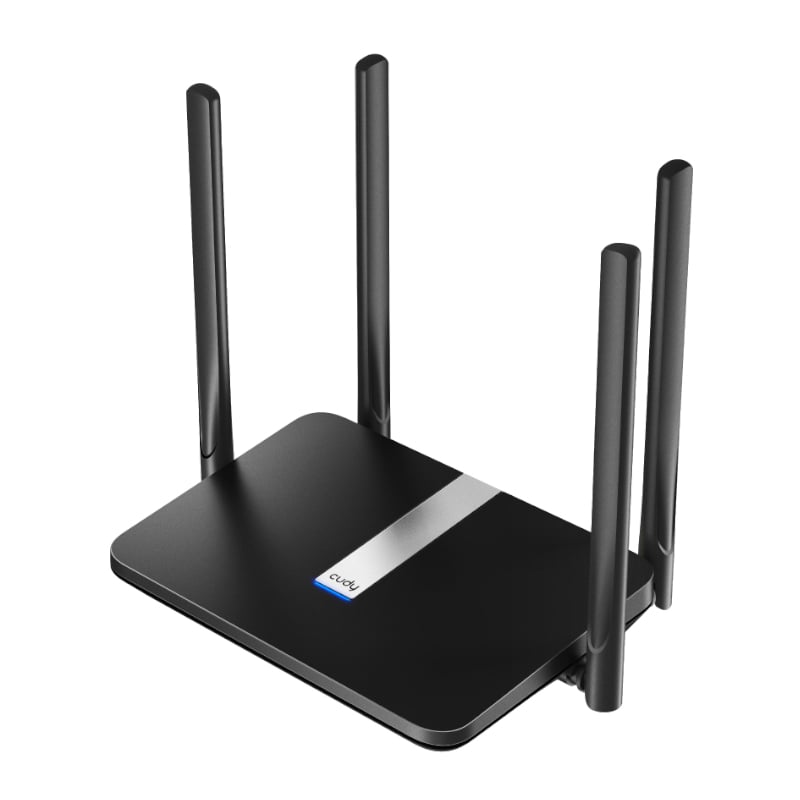

Cudy AC1200 WiFi 4G LTE Cat4 Router

Description

FM002-LT500-

The Cudy LT500 4G LTE AC1200 Dual Band Wi-Fi Router uses the latest generation of 4G LTE technology to achieve speeds of up to 150 Mbps when downloading and 50 Mbps when uploading. You can also connect to games, streaming and more using Wi-Fi at a maximum speed of 867Mbps on 5GHz and 300 Mbps to 2.4 GHz.

Its high-gain antennas increase the sensitivity of the router, which allows you to establish connections over longer distances. This in turn provides stronger penetration through walls.

Its various modes also make it more versatile, if you are working in LAN mode, the LT500 is just a normal 4G LTE router. While working in WAN mode, the LT500 can maintain 4G and WAN connections at the same time and preferably provide the Internet via wired ports. Leaving the 4G network as a backup for peace of mind.

FEATURES:

• Up to 150 / 50Mbps LTE speed
• AC1200 Wi-Fi for a smoother experience
• High gain antennas expand coverage
• PPTP/L2TP/OpenVPN/WireGuard VPN client
• Flexible WAN/LAN port for dual connectivity
• Compatible with 20+ DDNS providers
• DNS over Cloudflare/NextDNS/Google

SPECIFICATIONS:

• CPU: MTK Chipset for Wi-Fi and Qualcomm Chipset for 4G
• DRAM/FLASH: 128MB DDR2 / 16M SPI Flash
• Interface:
  • 3x RJ45 10M/100M  LAN Ethernet interfaces
  • 1 x RJ45 10M/100M WAN Ethernet interfaces
  • 1 x Reset Button
  • 1 x WPS Button
  • 1 x SIM Slot (Micro)
• Antenna: 2 x WiFi Antennas and 2 x LTE Antennas
• Gain: 5dBi
• Wi-Fi Frequency: 2.4GHZ, 5GHz
• LTE Frequency Bands EU Version:
  • LTE-FDD: B1/B3/B7/B8/B20/B28A
  • LTE-TDD: B38/B40/B41
  • WCDMA: B1/B8
  • GSM/EDGE: B3/B8
• LTE Frequency Bands US Version:
  • LTE-FDD: B2/B4/B5/B12/B13/B14/B66/ B71
  • WCDMA: B2/B4/B5
• Wireless Features:
  • Wireless Standards: IEEE 802.11ac/a/n/b/g
  • Frequency: 2.4 GHz and 5GHz
  • Signal Rate:
    • 867Mbps (5GHz), 300 Mbps (2.4 GHz)
    • Compatible with 802.11ac/a/b/g/n Wi-Fi standards
  • Transmit Power:
    • CE: <20dBm
    • FCC:<30dBm
  • Wireless Modes: Enable/Disable Wireless Radio, WMM
  • Wireless Functions: WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
• System Requirements:
  • Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS, NetWare, UNIX or Linux
  • Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser
  • Subscription with an internet service provider (for internet access)

WHAT’S IN THE BOX:

• Cudy LT500 4G LTE AC1200 Dual Band Wi-Fi Router – Black x1
• Power Adapter x1
• RJ45 Ethernet Cable x 1
• Quick Installation Guide x1
• SIM Card Adapter x1
