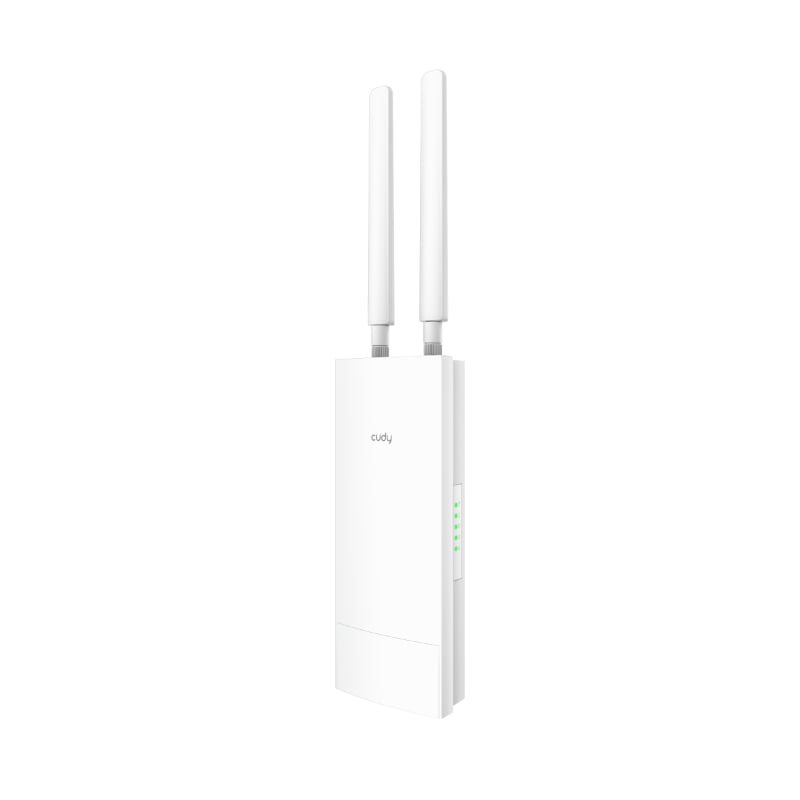

Cudy AC1200 Gigabit Dual Band Ceiling Access Point – Outdoor

Description

FM002-AP1300 OUTDOOR-

The Cudy AC1200 Outdoor Gigabit Wireless Access Point will enhance your wireless experience. With its lightning-fast dual-band AC1200 Wi-Fi, you can connect to over 30 devices simultaneously while minimising latency. It’s ideal for high-traffic areas because it supports up to 128 simultaneous connections per AP.

Their sophisticated Beamforming technology and two external antennas provide great Wi-Fi coverage in a variety of circumstances. And here’s the best part: if your location requires even more coverage, you can easily extend into a Mesh network by adding another Cudy AP. The quick configuration allows you to connect to a Cudy Mesh AP/router/Mesh unit/VPN Router/AC, extending your Wi-Fi range.

Experience adaptive routing that intelligently optimises your network for stability. When the backhaul path encounters interference, it immediately switches to a better route, ensuring continuous connectivity. Cudy will let you up your wireless game and experience seamless, high-speed Wi-Fi in any location.

FEATURES:

•  AC1200 MU-MIMO Dual Band Wi-Fi
• MT7621DAT+MT7613B+MT7603E
• 4-In-1: AP/RE/Router/WISP
• 1× Gigabit WAN/LAN
• WPS Button, Reset Button
• 802.3at/af PoE or Passive PoE (Adapter Included)
• Cudy Mesh
• IP65, -20~60°C (Ext. -40~65 °C), 8/15 KV Contact/Air ESD + 4 KV Surge/Lightning Protection

SPECIFICATIONS:

• CPU: 880 MHz Dual-Core Processor
• Flash: 16 MB (128 Mbit)
• DDR: 128 MB (1 Gbit)
• Interface: 1× Gigabit Ethernet Port (RJ-45) (Support IEEE802.3af PoE and Passive PoE), 1× Reset Button
• Power Supply: 802.3af/at PoE, 24-57 V Passive PoE (+4,5pins; -7,8pins)
• Power Consumption: Idle: 4 W, PoE Max: 11 W, DC Max: 7.5 W
• Antenna Type: 2× Detachable Omni-directional Antennas
• Mounting: Pole/Wall Mounting (Kits included)
• Wireless Standards: Wi-Fi 5 (802.11ac/n/g/b/a)
• Frequency: 2.4 GHz and 5 GHz
• Signal Rate: 5 GHz: Up to 867 Mbps, 2.4 GHz: Up to 300 Mbps
• Channel Width: 20/40/80 MHz
• Wireless Function:
• Multiple SSID
• Mesh (Requires a Cudy Mesh unit/Mesh router/AC as the gateway with firmware newer than 15.28)
• Band Steering
• Auto Channel Optimization
• Enable/Disable Wireless Radio
• Transmit Power Control
• QoS (WMM)
• MU-MIMO
• Beamforming
• Rate Limit
• Reboot Schedule
• Wireless Schedule
• Wireless Encryption: WPA-PSK, WPA2-PSK, WPA-PSK/WPA2-PSK
• Weather Protection: IP65 (Protection against any dust and low-pressure water from any direction)
• Lightning Protection: 4 KV Lightning/Surge protection at the Ethernet port
• ESD: 8 KV Contact / 15 KV Air ESD protection
• Operating Modes: Wireless Access Point Mode, Wireless Router Mode, Wireless Extender Mode, WISP Mode
• Operating Temperature: 0~40 °C (-4~140°F)
• Storage Temperature: -40~70 °C (-40~158 °F)
• Dimensions: 24 × 10 × 5.4 cm

WHAT’S IN THE BOX:

• Cudy AC1200 Outdoor Gigabit Wireless Access Point – White x1
