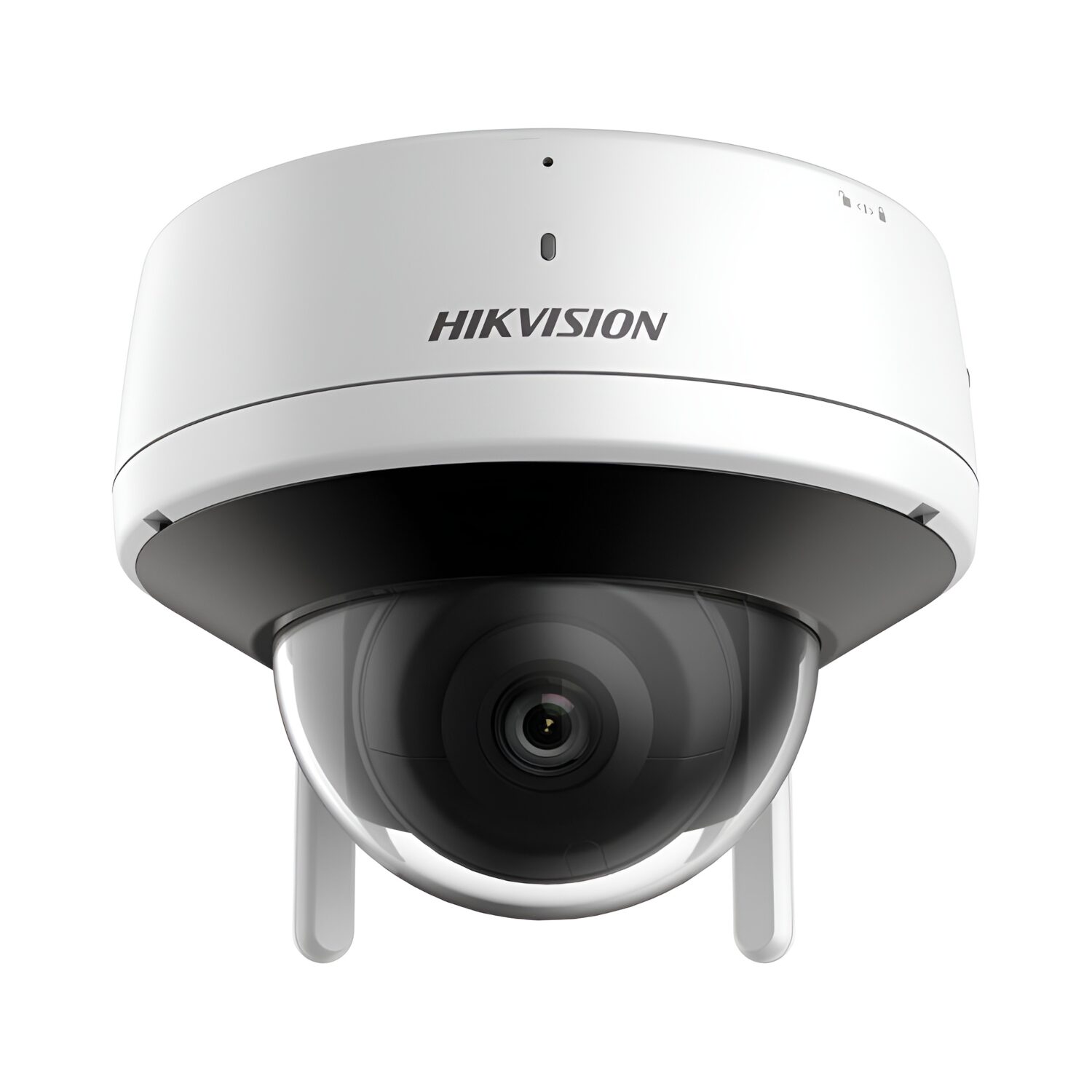

Hikvision Fixed Dome Outdoor Security Camera, 4mm Lens, 2MP

Description

FM002-DS-2CV2121G2-IDW-4-

Enhance your security with the Hikvision Fixed Dome Outdoor Security Camera, designed for homes, businesses, and surveillance professionals seeking a reliable, high-definition security solution. With its 2MP resolution and advanced EXIR 2.0 infrared technology, this camera delivers clear, detailed images even in low-light conditions, ensuring round-the-clock monitoring.

Seamlessly connect via Wi-Fi for a hassle-free installation, eliminating the need for complex wiring. The built-in two-way audio allows real-time communication, making it ideal for remote monitoring of homes, offices, retail stores, or warehouses. With H.265 video compression, the camera reduces bandwidth usage and storage requirements without compromising image quality.

Designed to withstand harsh environments, this dome camera is IP66-rated, providing resistance against water and dust. The adjustable viewing angles ensure flexible coverage for different monitoring needs. For added security, the built-in microSD card slot supports up to 512GB of local storage, ensuring your footage is always accessible.

Compatible with Hik-Connect, iVMS-4200, and major security platforms, this camera offers remote access from anywhere, allowing users to monitor live feeds and receive alerts in real-time. Whether you’re safeguarding your home or managing a security network for a business, the Hikvision Fixed Dome Outdoor Security Camera is a powerful, feature-packed surveillance solution.

FEATURES:

• High-quality imaging with 2 MP resolution
• Wi-Fi connection and easy installation
• Provides real-time security via built-in two-way audio
• Efficient H.265 compression technology
• EXIR 2.0, advanced infrared technology with long IR distance
• Water and dust resistant (IP66)
• Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB

SPECIFICATIONS:

• Camera
• Image Sensor: 1/2.8″ Progressive Scan CMOS
• Max. Resolution: 1920 × 1080 (2MP)
• Min. Illumination:Colour: 0.005 Lux @ (F1.6, AGC ON) B/W: 0 Lux with IR
• Shutter Time: 1/3 s to 1/10,000 s
• Day & Night: IR cut filter
• Angle Adjustment:Pan: 0° to 355°, Tilt: 0° to 75°, Rotate: 0° to 355°
• Lens
• Lens Type: Fixed focal lens (4mm)
• Focal Length & Field of View (FOV): Horizontal FOV 75°, Vertical FOV 41°, Diagonal FOV 89°
• Aperture: F1.6
• Iris Type: Fixed
• Lens Mount: M12
• Depth of Field: 4mm: 2m to ∞
• DORI
• 4mm: Detection (D): 52m, Observation (O): 21m, Recognition (R): 11m, Identification (I): 5m
• Illuminator
• Supplement Light Type: IR
• IR Wavelength: 850nm
• Supplement Light Range: Up to 30m
• Smart Supplement Light: Yes
• Video
• Main Stream:50Hz: 25fps (1920 × 1080, 1280 × 720) 60Hz: 30fps (1920 × 1080, 1280 × 720)
• Sub-Stream:50Hz: 25fps (768 × 432, 512 × 288) 60Hz: 30fps (768 × 432, 512 × 288)
• Video Compression: Main Stream: H.264 Sub-Stream: H.264
• Video Bit Rate: 32 Kbps to 8 Mbps
• H.264 Type: Baseline Profile/Main Profile/High Profile
• Audio
• Audio Compression: G.711 / AAC-LC
• Audio Bit Rate:64Kbps (G.711)/16–64Kbps (AAC-LC)
• Audio Sampling Rate: 8kHz / 16kHz
• Environment Noise Filtering: Yes
• Network
• Protocols Supported: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, RTCP, NTP, UPnP, IGMP, QoS, IPv4, UDP, Bonjour, SSL/TLS
• Simultaneous Live View: Up to 6 channels
• API: ONVIF, SDK
• Client: Hik-Connect, iVMS-4200, Hik-Partner-Pro
• Security Features: Password protection, HTTPS encryption, Security audit log, Basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE for Open Network Video Interface
• Wi-Fi
• Transfer Rate: 11b: Up to 54 Mbps, 11g: Up to 54 Mbps, 11n: Up to 150 Mbps
• Wi-Fi Protocols: IEEE 802.11b/g/n
• Frequency Range: 2.412 GHz to 2.472 GHz
• Channel Bandwidth: 20 MHz
• Modulation: 802.11b: CCK, QPSK, BPSK, 802.11g: OFDM, 802.11n: OFDM
• Wireless Range: Up to 120m (varies based on environment)
• Antenna: 2 antennas
• Image
• Image Settings: Rotate mode, saturation, brightness, contrast, sharpness
• Day/Night Switch: Auto, Schedule, Day, Night
• Wide Dynamic Range (WDR): Digital WDR
• Privacy Mask: 4 programmable polygon privacy masks
• Interface
• Built-in Microphone: Yes
• Built-in Speaker: Yes
• On-Board Storage: Supports microSD/microSDHC/microSDXC cards (up to 512GB)
• Reset Key: Yes
• Ethernet Interface: 1 × RJ45 10M/100M self-adaptive Ethernet port
• Event
• Basic Events: Motion detection (human and vehicle classification), exception alerts
• Linkage Methods: Upload to memory card, notify surveillance centre, trigger capture, audible warning, auto-tracking lite
• General
• Power Supply: 12V DC ±10%, 1A, max. 10W, Ø 2mm coaxial power plug, reverse polarity protection
• Operating Temperature: -30°C to 60°C (-22°F to 140°F), Humidity ≤95% (non-condensing)
• Storage Temperature: -30°C to 60°C (-22°F to 140°F), Humidity ≤95% (non-condensing)
• Material:Base: Metal, Front Cover: Polycarbonate, Back Cover: Polycarbonate
• Dimensions: 12 × 12 × 9.5 cm
• Weight: Approx. 593g
• Certifications & Compliance
• EMC Compliance: CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4:2011+A1:2014)
• RF Compliance: CE-RED (EN 301489-1 V2.1.1, EN 301489-17 V3.1.1, EN 300328 V2.1.1, EN 62311:2008)
• Safety Compliance: CB (IEC 62368-1: 2014+A11)
• CE-LVD (EN 62368-1: 2014/A11:2017)
• Environmental Compliance: CE-RoHS (2011/65/EU) WEEE (2012/19/EU)
• Protection Rating: IP66 (IEC 60529-2013)

WHAT’S IN THE BOX:

• Hikvision Fixed Dome Outdoor Security Camera, 4mm Lens, 2MP x1
• User Manual x1
