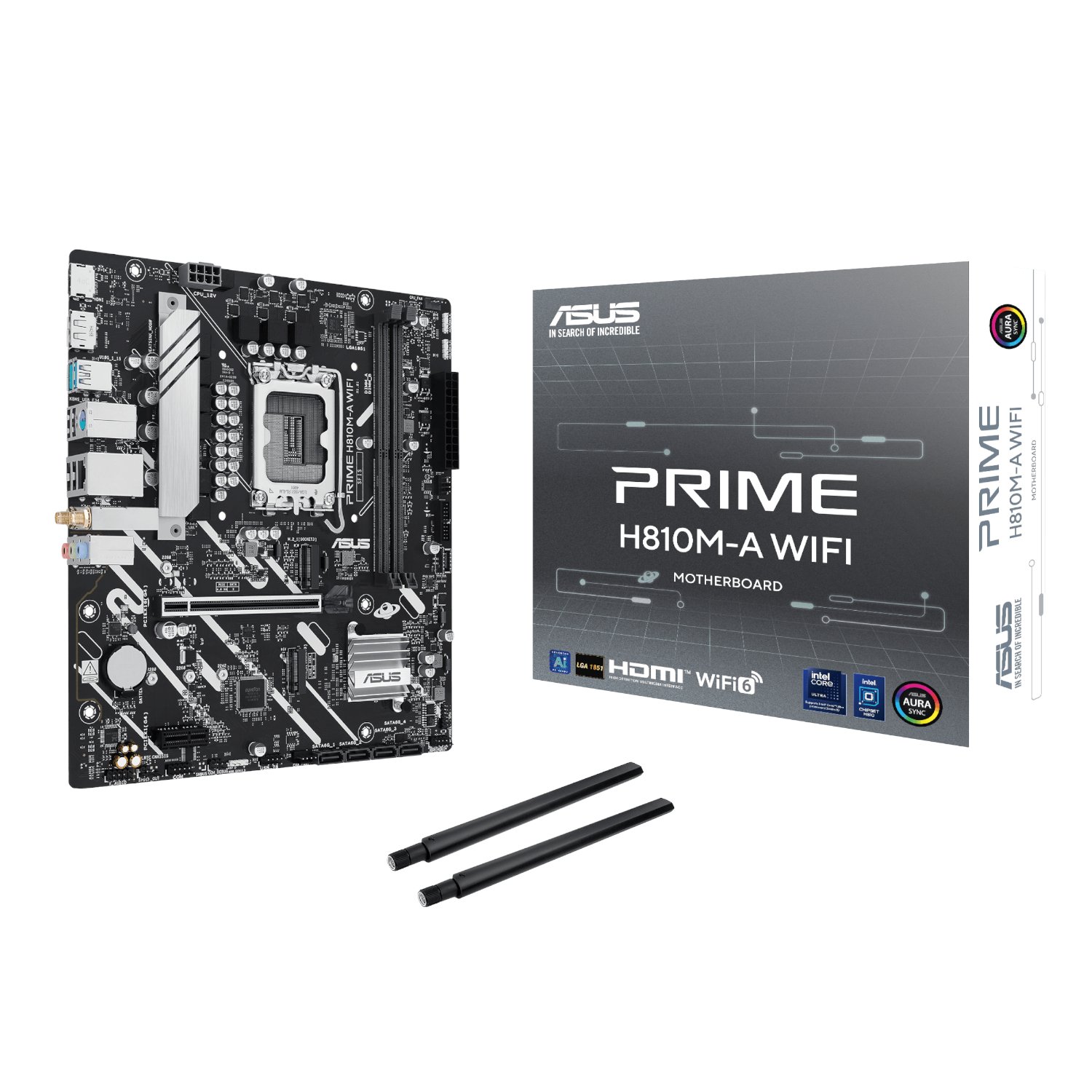

Asus PRIME H810M-A WIFI LGA1851 Micro ATX Motherboard

Description

FM002-PRIME H810M-AWIFI-

Quick Specs

• Supports the latest Intel LGA1851 processors for cutting-edge performance.
• Experience faster data transfer speeds with a PCIe 4.0 slot.
• Enjoy stable wireless connections with built-in Wi-Fi.
• Benefit from user-friendly PC building with SafeSlot Core+ and Q-LED Core.
• Achieve high-fidelity audio with advanced audio features.

Built for the latest Intel CPUs

Designed to support the newest Intel LGA1851 processors, this micro ATX motherboard ensures you’re ready for the next generation of computing. Whether you’re building a gaming rig or a workstation, this motherboard provides a solid foundation for your system.

Fast and reliable connectivity

Featuring a PCIe 4.0 slot, the Asus PRIME H810M-A WIFI micro ATX motherboard delivers lightning-fast data transfer speeds for your graphics card and other expansion cards. The integrated Wi-Fi ensures stable and reliable wireless connections, perfect for streaming, gaming, and video conferencing.

User-friendly design for easy PC building

The SafeSlot Core+ and Q-LED Core features make PC building easier and safer. SafeSlot Core+ reinforces the PCIe slot to prevent damage from heavy graphics cards, while Q-LED Core provides visual cues to help diagnose and troubleshoot common issues during the build process. This DDR5 motherboard also simplifies upgrades.

Immersive audio experience

With its advanced audio features, this DDR5 motherboard delivers high-fidelity sound for an immersive gaming and multimedia experience. Enjoy clear and crisp audio whether you’re using headphones or speakers.

Durable and reliable performance

Built with high-quality components and rigorous testing, the Asus PRIME H810M-A WIFI DDR5 motherboard ensures long-lasting durability and reliable performance. This micro ATX motherboard is designed to handle the demands of modern computing, providing a stable and efficient platform for your system.

FEATURES:

• Intel H810M Chipset
• Supports Intel® Core™ Ultra Processors (Series 2)
• Supports DDR5 Memory, Dual Channel DDR5 6400+ MT/s (OC) 128GB max capacity
• Ultra-fast Wi-Fi 6 connectivity with Realtek 1G Ethernet LAN
• Lightning Fast Game experience: PCIe 4.0 slot support
• EZ PC DIY: SafeSlot Core+ and Q-LED Core for easy usage
• Aura Sync support for full RGB lighting control

SPECIFICATIONS:

• CPU:
  • Support Intel® Core™ Ultra Processors (Series 2) , LGA1851
  • Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
  • * Refer to https://www.asus.com/support/download-center/ for CPU support list.
  • ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
• Chipset: Intel® H810 Chipset
• Memory:
  • 2 x DIMM slots, max. 128GB, DDR5
  • Supports up to 6400MT/s, Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
  • Dual channel memory architecture
  • DIMM Fit
  • Supports Intel® Extreme Memory Profile (XMP) memory module
  • ASUS Enhanced Memory Profile II (AEMP II)
  • *Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration
  • ** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
• Graphics:
  • 1 x DisplayPort**
  • 1 x HDMI™ port***
  • * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
  • ** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
  • *** Supports 4K@60Hz as specified in HDMI 2.1.
  • **** VGA resolution support depends on processors’ or graphic cards’ resolution.
• Expansion Slots:
  • Intel® Core™ Ultra Processors (Series 2)
  • 1 x PCIe 4.0 x16 slot
  • Intel® H810 Chipset
  • 1 x PCIe 4.0 x1 slot
  • To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.
• Storage:
  • Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
  • Intel® H810 Chipset
  • M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
  • M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode)
  • 4 x SATA 6Gb/s ports
• Ethernet:
  • 1 x Intel® 1Gb Ethernet port*
  • ASUS LANGuard
  • *With Intel® I219V LAN, Wake-on-LAN is not supported in S5 after the system transitions from G3.
• Wireless & Bluetooth:
  • Wi-Fi 6
  • 1×1 Wi-Fi 6 (802.11ax)
  • Supports 2.4/5GHz frequency band
  • Bluetooth® v5.3*
  • * The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer’s website for the latest specifications.
• Rear USB (Total 6 ports):
  • 2 x USB 10Gbps ports (2 x Type-A)
  • 4 x USB 2.0 ports (4 x Type-A)
• Front USB (Total 5 ports)
  • 1 x USB 5Gbps connector (supports USB Type-C®)*
  • 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
  • 1 x USB 2.0 header supports 2 additional USB 2.0 ports
  • * USB Type-C® power delivery output: max. 5V/3A
  • ** USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.
• Audio:
  • Realtek 7.1 Surround Sound High Definition Audio CODEC*
  • Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
  • Supports up to 24-Bit/192 kHz playback
• Audio Features:
  • Audio Shielding
  • Premium audio capacitors
  • Dedicated audio PCB layers
  • * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
• Back Panel I/O Ports:
  • 2 x USB 10Gbps ports (2 x Type-A)
  • 4 x USB 2.0 ports (4 x Type-A)
  • 1 x DisplayPort
  • 1 x HDMI™ port
  • 1 x Wi-Fi module
  • 1 x Intel® 1Gb Ethernet port
  • 3 x Audio jacks
  • 1 x PS/2 keyboard/mouse combo port
• Operating System: Windows 11 (22H2 & later), Windows 10 64-bit (21H2 & later)
• Form Factor: Micro ATX

WHAT’S IN THE BOX:

• Asus PRIME H810M-A WIFI LGA1851 Micro ATX Motherboard – Black x1
• Asus Wi-Fi Moving Antenna x1
• SATA Cables x2
• I/O Shield x1
• Screw Package for M.2 SSD x1
• Quick Start Guide x1
