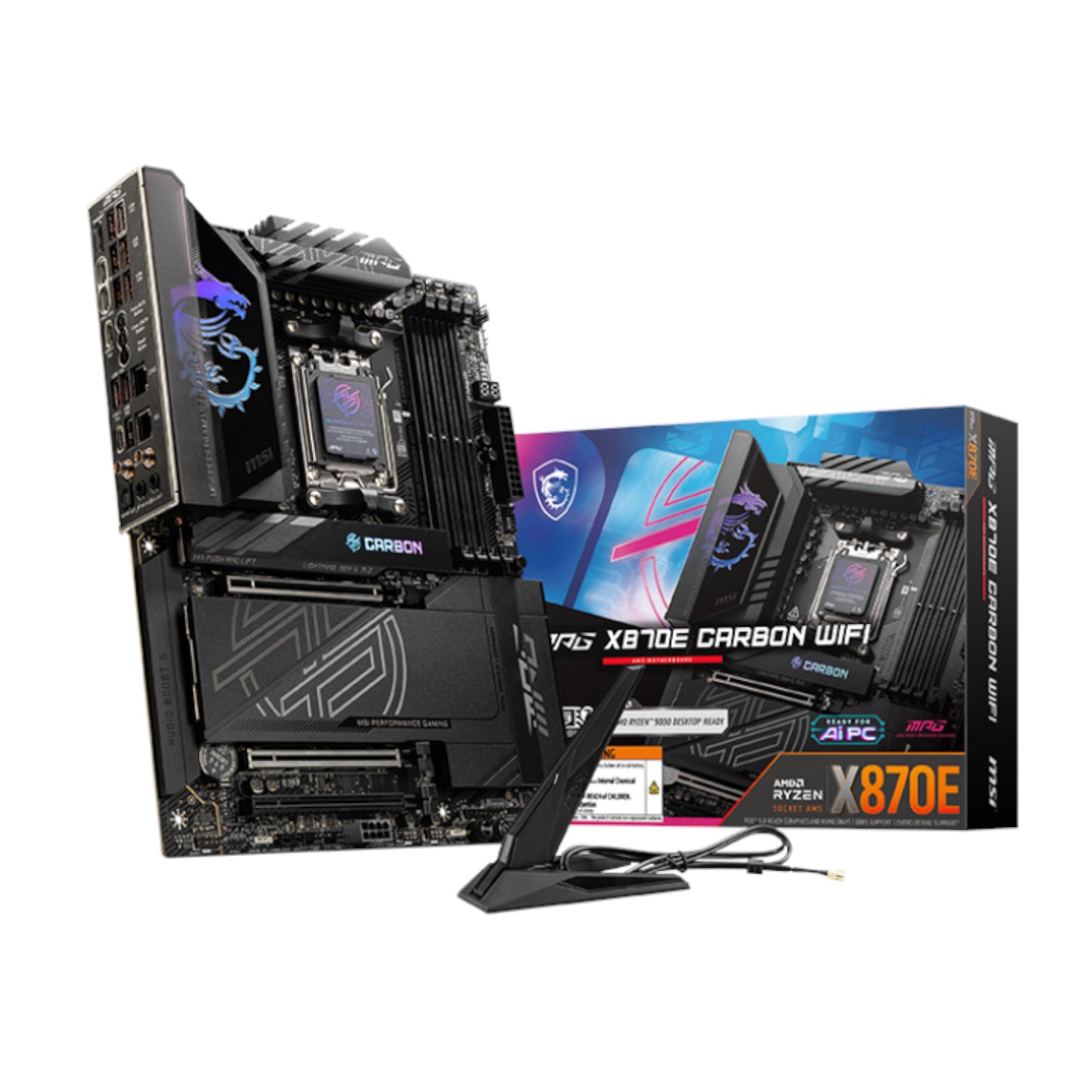

MSI MAG X870E CARBON WIFI ATX Motherboard

Description

FM002-MPGX870ECARBONWIFI-

MPG X870E CARBON WIFI employs a carbon black colour scheme and stylish pattern over Mystic light RGB lighting to show a different identity. It is also powerful inside by featuring 5G LAN, true Wi-Fi 7 solution, USB 40Gbps, Supplemental PCIe Power, and the latest EZ DIY designs, making this motherboard one of the best X870E ATX motherboards for Ryzen 9000 series processors.

MSI’s premium MPG (MSI PERFORMANCE GAMING) series is engineered for gamers who demand strong performance and sleek design. Each product showcases cutting-edge aesthetics and vibrant colours, reflecting MPG’s commitment to exceptional design. With optimized configurations, MPG creates a visually striking and powerful gaming experience that leads the trends.

MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.

MSI’s exclusive EZ M.2 Shield Frozr II and EZ M.2 Clip II make M.2 installation seamless. An easy-to-access physical button release mechanism that can help remove any PCIe card with a single tap, making it much easier to upgrade to a new GPU or other compatible device, streamlining the entire process and enhancing user experience.

Unleash and sustain the maximum performance with a flagship VRM design built with a total of 18+2+1 Duet Rail Power System. Combining dual power connectors and 110A Smart Power Stage, MPG X870E CARBON WIFI is ready for the challenge of high-end processors.

Wi-Fi 7 is the latest wireless solution that takes a huge leap forward with multiple improvements to meet the traffic demand brought and the growing number of wireless devices.

FEATURES:

• Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
• Supports DDR5 Memory, Dual Channel DDR5 8400+ MT/s (OC)
• Ultra Performance: 18+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, and Memory Boost
• Frozr Guard: Enlarged heatsink with heat-pipe, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads and M.2 Shield Frozr
• EZ DIY: EZ PCIe Release, EZ M.2 Shield Frozr II, EZ M.2 Clip II and EZ Antenna
• Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 M.2
• Ultra Connect: USB4 and 5G LAN + 2.5G LAN with Wi-Fi 7 Solution
• Audio Boost 5: Reward your ears with studio grade sound quality for the most immersive gaming experience

SPECIFICATIONS:

• Socket: AMD Socket AM5
• CPU: Supports AMD Ryzen™ 8000/7000/9000 Series Desktop Processors
• Chipset: AMD X870E
• DDR5 Memory: Support DDR5 8400 – 5600 (OC) MT/s / 5600 – 4800 (JEDEC) MT/s
• Memory Channel: Dual
• DIMM Slots: 4
• Max Memory (GB): 256
• PCI-E x16: 3
• SATA 6G: 4
• M.2 Slot: 4
• RAID: 0/1/10
• LAN: 1 x Realtek^® 8126 5G LAN, 1 x Realtek^® 8125 2.5G LAN
• Wi-Fi and Bluetooth: Wi-Fi 7 Solution
• USB 3.2 ports (Front): 1(USB 20Gbps Type C), 4(USB 5Gbps Type A)
• USB 3.2 ports (Rear): 2(USB 40Gbps Type-C), 2(USB 10Gbps Type-C), 9(USB 10Gbps Type A)
• USB 2.0 ports (Front): 4
• Audio ports (Rear): Realtek® ALC4080 Codec
• HDMI: 1
• Type-C DisplayPort: 2
• DirectX: 12
• Form Factor: ATX
• Operating System: Support for Windows® 10 64-bit/11 64-bit

WHAT’S IN THE BOX:

• MSI MAG X870E CARBON WIFI ATX Motherboard – Black x1
• EZ Wi-Fi Antenna x1
• EZ M.2 Clip II x1
• EZ M.2 Clip II Remover x1
• 1 to 3 EZ Conn-Cable (V2) x1
• USB Drive x1
• SATA cables x2
• ARGB Extension Cable x1
• 1 to 2 RGB Extension Cable x1
• EZ Front Panel Cable x1
• Quick Install Guide x1
