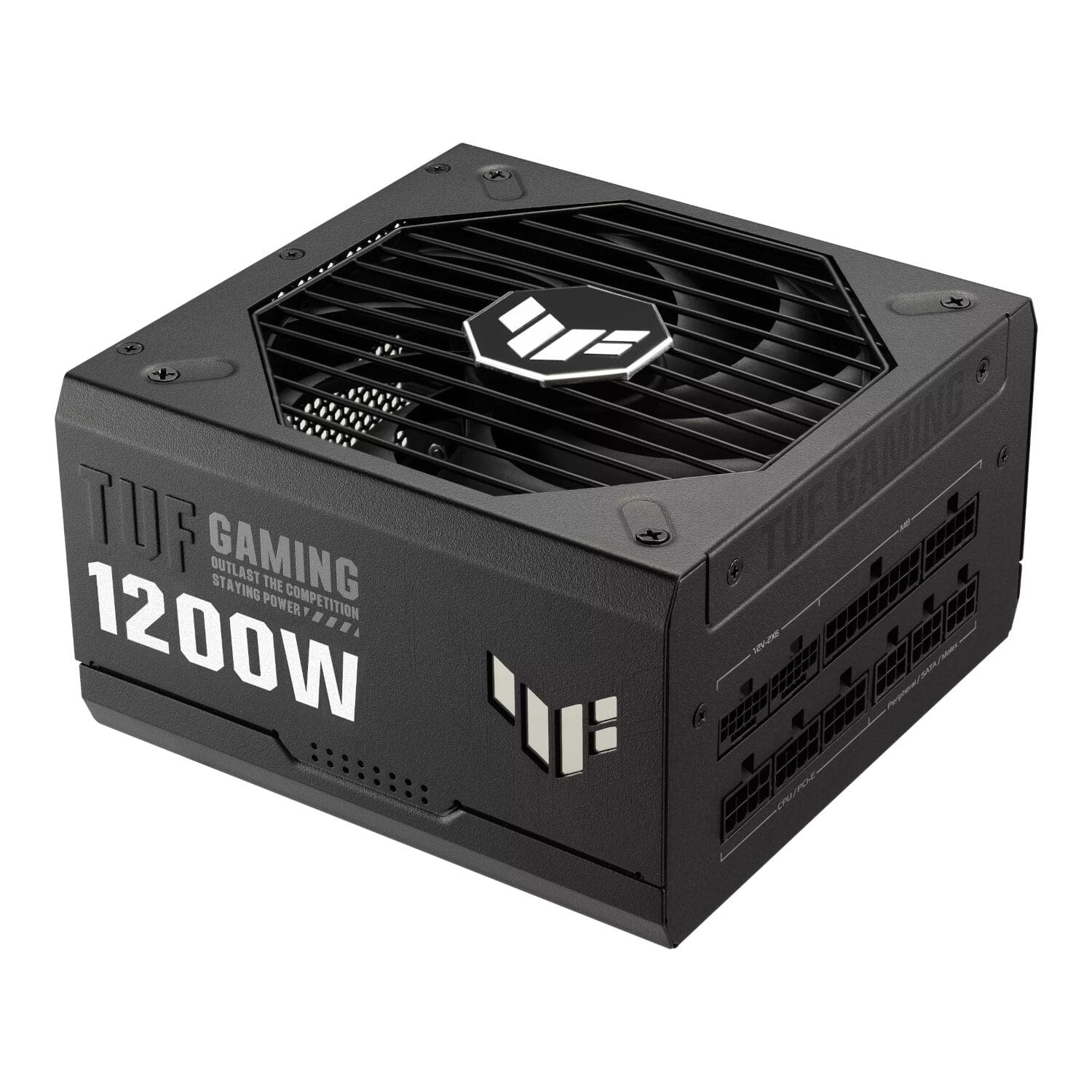

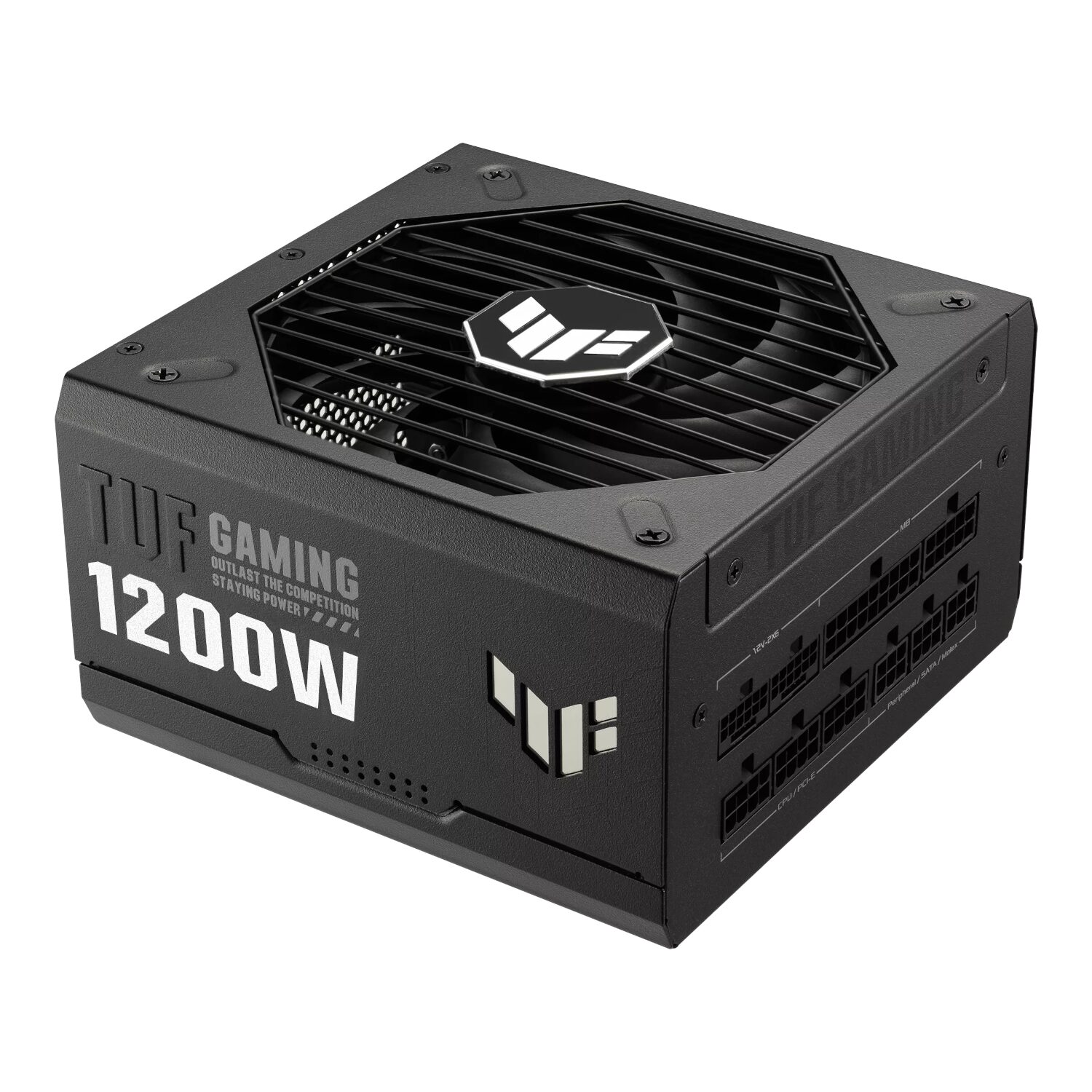

ASUS TUF Gaming 1200W Gold PSU

Description

FM002-TUF-GAMING-1200G-

The ASUS TUF Gaming 1200W Gold PSU is engineered to meet the demanding needs of high-performance gaming PC builds, delivering consistent, efficient, and reliable power to your system. With its 80 Plus Gold certification, this power supply unit (PSU) offers up to 92% energy efficiency, ensuring minimal heat generation, reduced fan noise, and optimal performance.

Built to last, the ASUS TUF Gaming 1200W Gold PSU is equipped with military-grade components, including high-end Japanese capacitors and dual ball fan bearings that significantly extend its lifespan. The PSU’s MTBF rating exceeds 120,000 hours at 40°C, ensuring durability for long-term use. Additionally, the unit undergoes rigorous drop, vibration, and extreme temperature tests, ensuring resilience even in harsh environments.

This PSU is fully modular, allowing you to customise your cable management for a tidy and organised system. The etched cables are made from premium, flexible materials and are capable of withstanding high temperatures, ensuring safety and performance throughout your build.

The Axial-tech fan design ensures superior airflow, keeping your rig cool even under heavy loads. With a 135mm fan that operates at low RPMs, the PSU maintains quiet operation while delivering powerful cooling. Whether you’re gaming or running resource-intensive applications, the ASUS TUF Gaming 1200W Gold PSU is ready to handle the power demands of next-gen hardware, including PCIe Gen 5.1 graphics cards, with its 16-pin PCIe cable that supports up to 600W of power.

Designed with ATX 3.1 compatibility, this PSU ensures seamless integration with future hardware. Plus, the 10-year warranty gives you peace of mind, knowing that your system is powered by one of the most reliable PSUs on the market.

For high-performance gaming PC builds, trust the ASUS TUF Gaming 1200W Gold PSU to deliver the power, efficiency, and durability needed for sustained success in every gaming session.

FEATURES:

• 80 Plus Gold Certification for up to 92% energy efficiency
• Military-grade components for enhanced durability and longevity
• Fully modular design for clean and efficient cable management
• Axial-tech fan design with a 135mm fan for superior cooling and quieter operation
• ATX 3.1 compatibility for next-gen hardware support, including PCIe Gen 5.1 graphics cards
• Dual ball fan bearings that last up to twice as long as sleeve bearing designs
• Extensive protection features with OPP/OVP/UVP/SCP/OCP/OTP safeguards
• 10-year warranty for long-term reliability and peace of mind

SPECIFICATIONS:

• Intel Specification: ATX12V
• Intel Form Factor: ATX12V
• PFC Type: Active PFC
• ATX Standard: ATX 3.1
• Efficiency: 80Plus Gold
• MTBF: >120,000 hrs @ 40°C
• Protection Features: OPP/OVP/UVP/SCP/OCP/OTP
• Hazardous Materials: ROHS
• AC Input Range: 100-240Vac
• DC Output Voltage: +3.3V +5V +12V -12V +5Vsb
• Maximum Load: 25A 25A 99A 0.8A 3A
• Combined Load: 130W 130W 1188W 9.6W 15W
• Total Output: 1200W
• Cable Connectors:
  • MB 24/20-pin x 1
  • CPU 4+4-pin x 2
  • PCI-E 16-pin x 2 (both PSU & component side)
  • PCI-E 8-pin x 3
  • SATA x 5
  • PERIPHERAL x 4
• 0dB Technology: Supported. The fan shuts off entirely when the PSU is under certain load
• 0dB Fan Button: No. The product operates in 0dB mode by default. The fan will only spin up when the system reaches a certain load.
• Weight: 2660 g (single PSU)
• Dimensions: 15 x 15 x 8.6 cm

WHAT’S IN THE BOX:

• ASUS TUF Gaming 1200W Gold PSU x1
• Power Cord x 1
• Motherboard Power Cable x 1
• CPU Cable x 2
• PCI-E Gen 5.1 16-pin Cable x 2
• PCI-E (16-pin to 8-pin-8-pin) Cable x 1
• PCI-E 1-to-1 Cable x 1
• SATA 1-to-2 Cable x 1
• SATA 1-to-3 Cable x 1
• Peripheral 1-to-4 Cable x 1
• TUF Gaming Cable Tie x 3
• User Manual x 1
