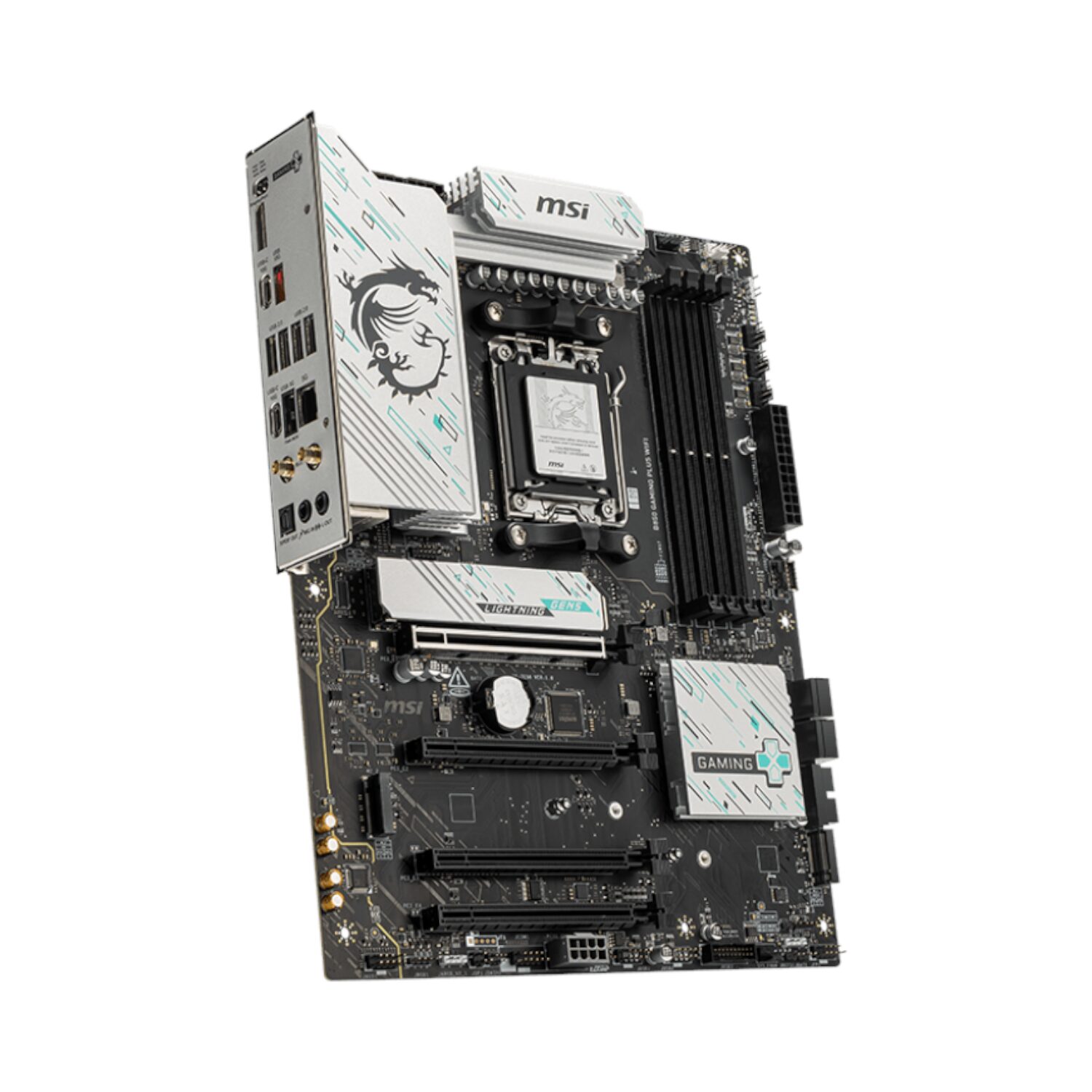

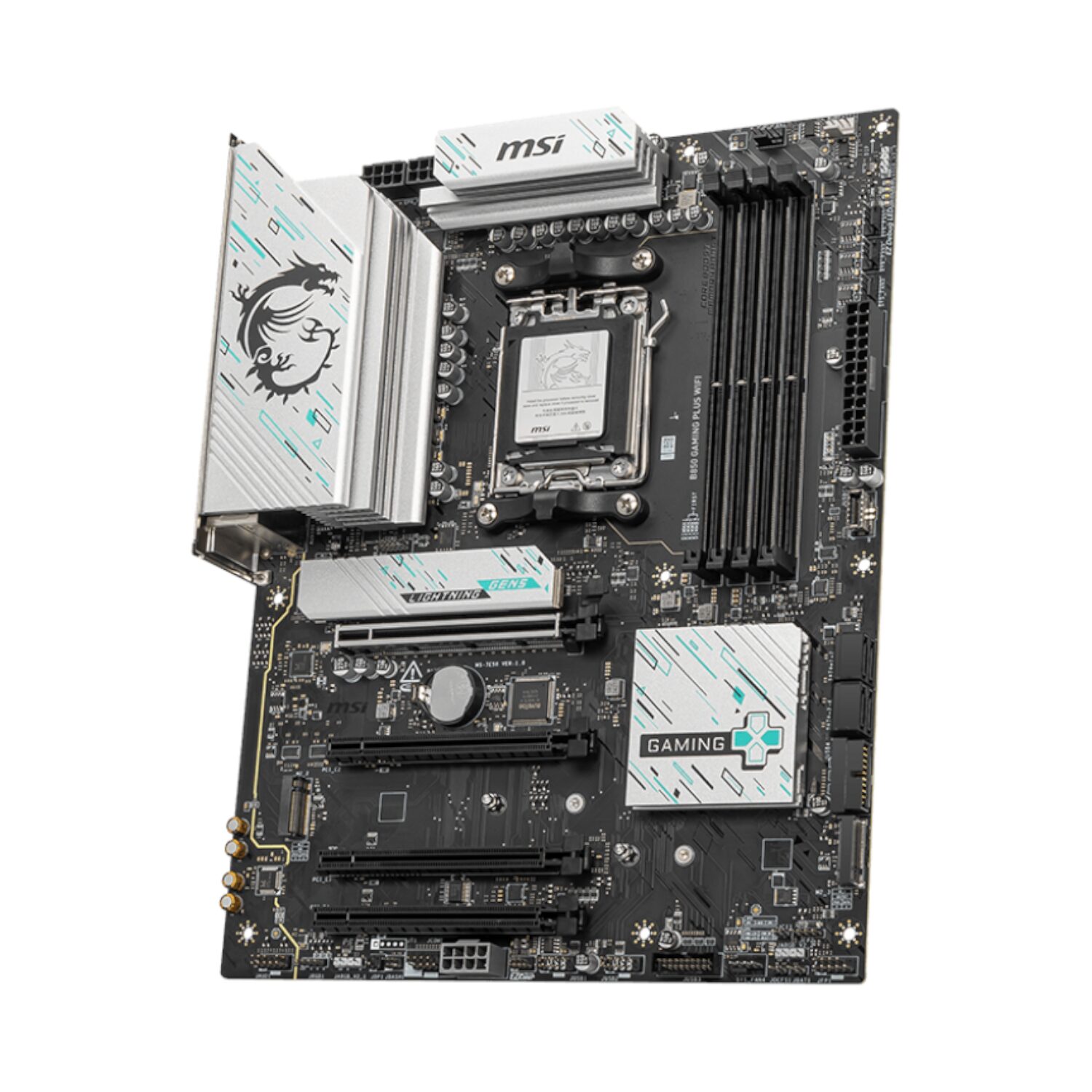

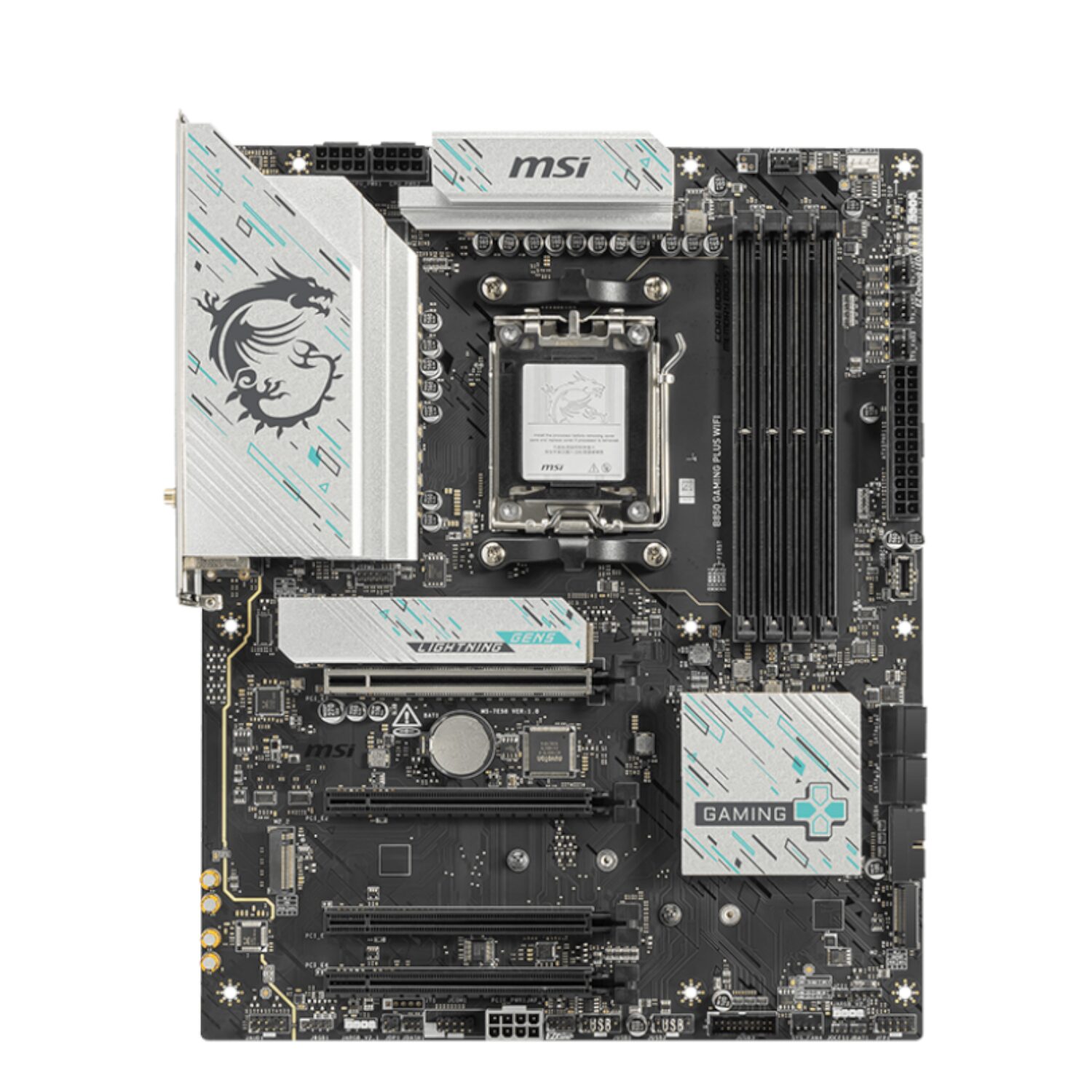

MSI B850 GAMING PLUS WIFI AM5 ATX Gaming Motherboard

Description

The B850 GAMING PLUS WIFI is crafted to offer extensive connectivity, versatile tools, and a premium Wi-Fi solution for gamers seeking a comprehensive experience. Featuring full-speed Wi-Fi 7, 5G LAN, PCIe 5.0 solution, Supplemental PCIe Power and exclusive EZ DIY features, it is ready for 24/7 non-stop gaming optimized for AMD Ryzen™ 9000 series processors.

MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.

MSI’s exclusive EZ M.2 Shield Frozr II and EZ CLIP II make M.2 installations seamless. Insert the SSD card into the slot and press it down to lock it in place with the clip. As you fasten the SSD, flick the clip outwards and then the SSD is removed. The process is smooth, and you don’t need to use your tools like before. One finger can give you the perfect DIY experience.

The new EZ PCIe Clip II, located on the first slot, features the rebounding force mechanism that allows for easy removal of the graphics card by pressing the tail-like lock with one finger. Due to this exquisite design, users can uninstall the graphics cards effortlessly, even in the cramped case spaces.

The Pre-Installed I/O Shield offers a streamlined and hassle-free installation experience by eliminating the need to manually fit the I/O shield during motherboard setup. With its built-in design, it ensures proper alignment and a secure fit, providing both protection and convenience while enhancing the overall durability of your build. The MSI EZ Antenna makes the process effortless by simply attaching fasteners to the motherboard without rotation.

A huge step of DDR performance enhancement with the latest DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, B850 GAMING PLUS WIFI is ready to deliver the world class memory performance.

MSI motherboards prioritize safety with the embedded Overcurrent Protection (OCP), ensuring crucial components such as the USB ports, DDR memory, PWM IC, and CPU are shielded from excessive current. This proactive defense mechanism curtails the risk of damage or malfunction due to power surges, promoting long-term system stability. This commitment to safeguarding your hardware underscores MSI’s dedication to producing motherboards that prioritize durability and stability.

FEATURES:

• Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
• Supports DDR5 Memory, Dual Channel DDR5 8200+ MT/s (OC)
• Ultra Performance: 12+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, and Memory Boost
• Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II
• High-speed Connectivity: 5G LAN with Full-speed Wi-Fi 7 Solution – The latest solution for professional and multimedia use
• Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2, Front USB Type-C
• EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna
• Audio Boost: Reward your ears with studio-grade sound quality for the most immersive gaming experience

SPECIFICATIONS:

• Socket: AMD Socket AM5
• CPU: Supports AMD Ryzen™ 8000/7000/9000 Series Desktop Processors
• Chipset: AMD B850
• DDR5 Memory: Support DDR5 8200 – 5600 (OC) MT/s / 5600 – 4800 (JEDEC) MT/s
• Memory Channel: Dual
• DIMM Slots: 4
• Max Memory (GB): 256
• PCI-E x16: 4
• SATA 6G: 4
• M.2 Slot: 3
• RAID: 0/1 (for M.2 NVMe storage devices)
• LAN: 1 x Realtek® 8126VB 5G LAN
• Wi-Fi and Bluetooth: Wi-Fi 7 Solution
• USB 3.2 ports (Front): 1(USB 5Gbps Type-C), 4(USB 5Gbps Type A)

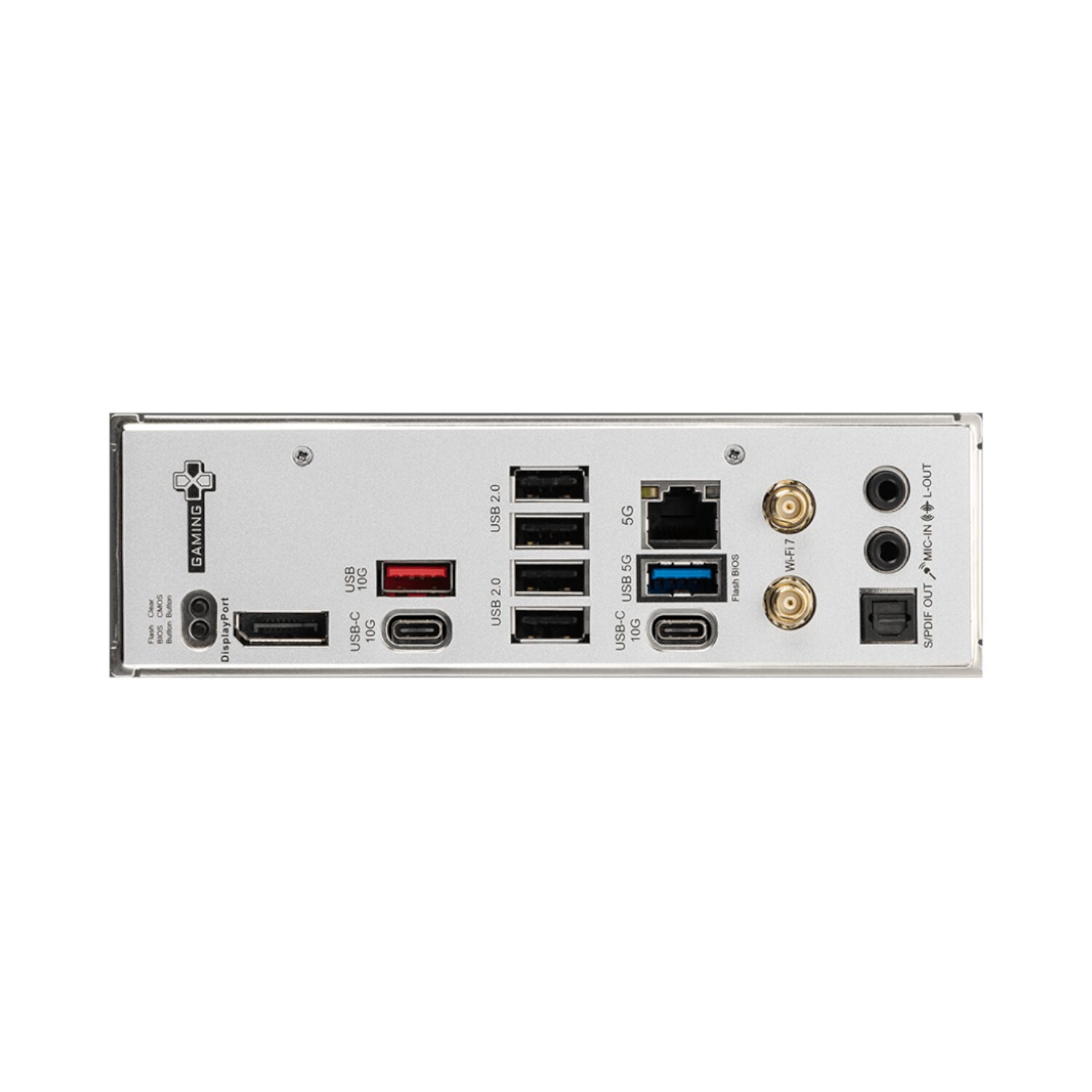

• USB 3.2 ports (Rear): 2(USB 10Gbps Type-C), 1(USB 10Gbps Type A), 1(USB 5Gbps Type A)
• USB 2.0 ports (Front): 4
• USB 2.0 ports (Rear): 4
• Audio ports (Rear): Realtek® ALC897 – 7.1-Channel High Definition Audio
• DisplayPort: 1
• DirectX: 12
• Form Factor: ATX
• Operating System: Support for Windows® 10 64-bit/11 64-bit

WHAT’S IN THE BOX:

• MSI B850 GAMING PLUS WIFI AM5 ATX Gaming Motherboard x1
• EZ Wi-Fi Antenna x1
• 1 to 2 EZ Conn-Cable (V1) x1
• SATA Cable x1
• EZ M.2 Clip II x1
• EZ M.2 Clip II Remover x1
• Quick Install Guide x1
